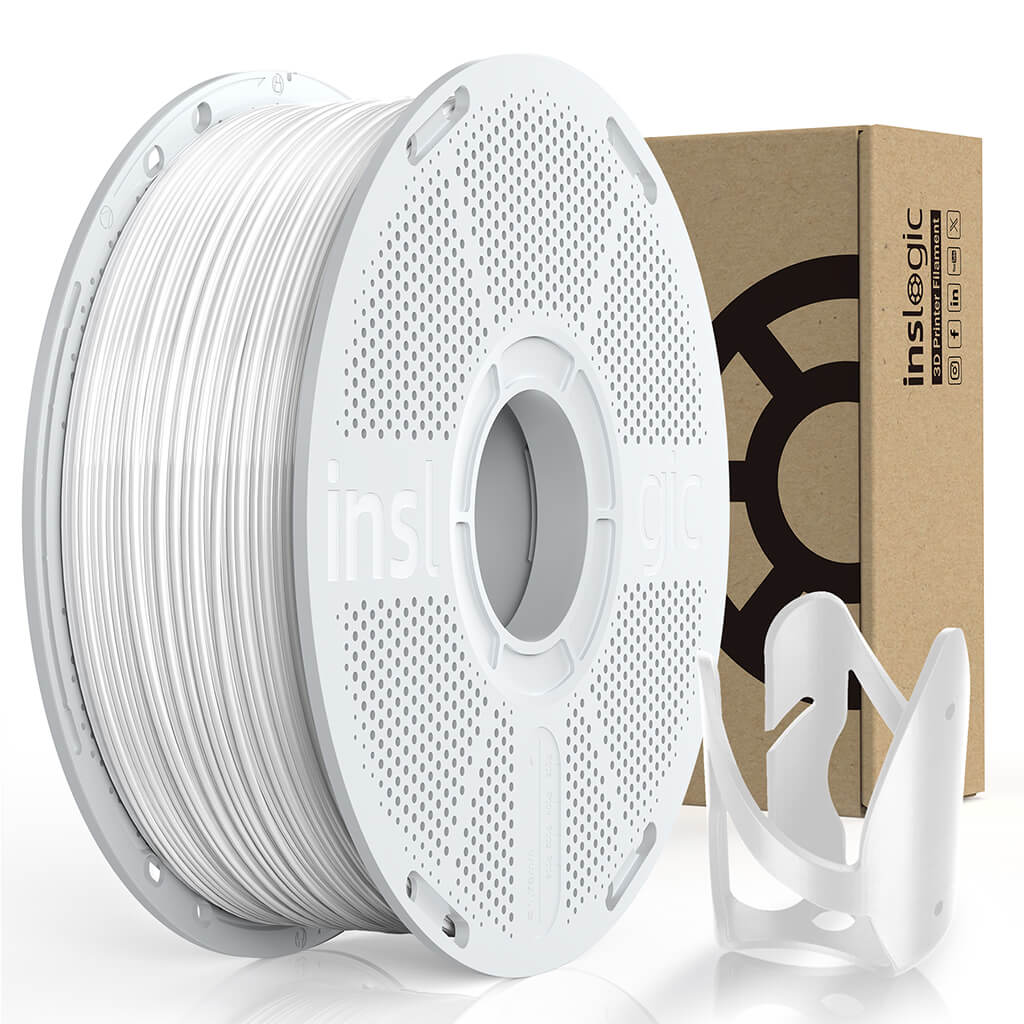

Inslogic ASA 1.75mm Filament 1kg Spool

Inslogic ASA filament is perfect if you’re printing parts that need to handle tough outdoor conditions or mechanical stress. This material provides excellent UV and weather resistance along with improved strength and dimensional stability. ASA has minimal warping, making it easier to print complex parts that remain precise and durable—even when exposed to sunlight, heat, or rain.

This listing comes with a 1kg spool which is on a reusable spool. Compatible with Bambulab AMS, Creality CFS, Prusa MMU, and other colour changing systems.

Key Features:

• Outdoor-Ready: UV and weather resistant, ideal for long-term outdoor use.

• Minimal Warping: Ensures good layer adhesion and stable, consistent results.

• Heat Resistant: Suitable for higher temperature environments, providing stable performance.

• Enhanced Mechanical Strength: Better durability and toughness compared to standard ABS.

• High Detail & Precision: Prints accurately even with fine detail and tight tolerances.

Applications:

• Mechanical parts and prototypes

• Outdoor functional objects

• Housing components

• Tooling and fixtures

• Long-lasting outdoor applications

Specifications:

• Material: ASA (Acrylonitrile Styrene Acrylate)

• Diameter: 1.75 mm (±0.02 mm tolerance)

• Net Weight: 1 kg spool

• Density: 1.05 g/cm³

• Melting Temperature: 120 °C

• Glass Transition Temperature: 108 °C

• Heat Deflection Temperature: 98 °C (at 0.45 MPa)

• Shrinkage: 0.4 – 0.9%

Recommended Print Settings:

• Nozzle Temperature & Speed:

  • 250–260 °C at 50–100 mm/s

  • 260–280 °C at 100–200 mm/s

• Bed Temperature: 80–100 °C

• Cooling Fan: 100%

• Bed Surface: Smooth PEI Sheet or High-Temperature Plate

• Drying Recommendation: 80 °C for 4 hours before printing

Mechanical Properties:

• Tensile Strength: 52.40 MPa

• Elongation at Break: 21.40%

• Flexural Strength: 75.20 MPa

• Flexural Modulus: 2162 MPa

• Izod Impact (Notched): 18.33 KJ/m²
